Product Details
＋
DESCRIPTION
Waldmann Part Number: 113155000-00669609

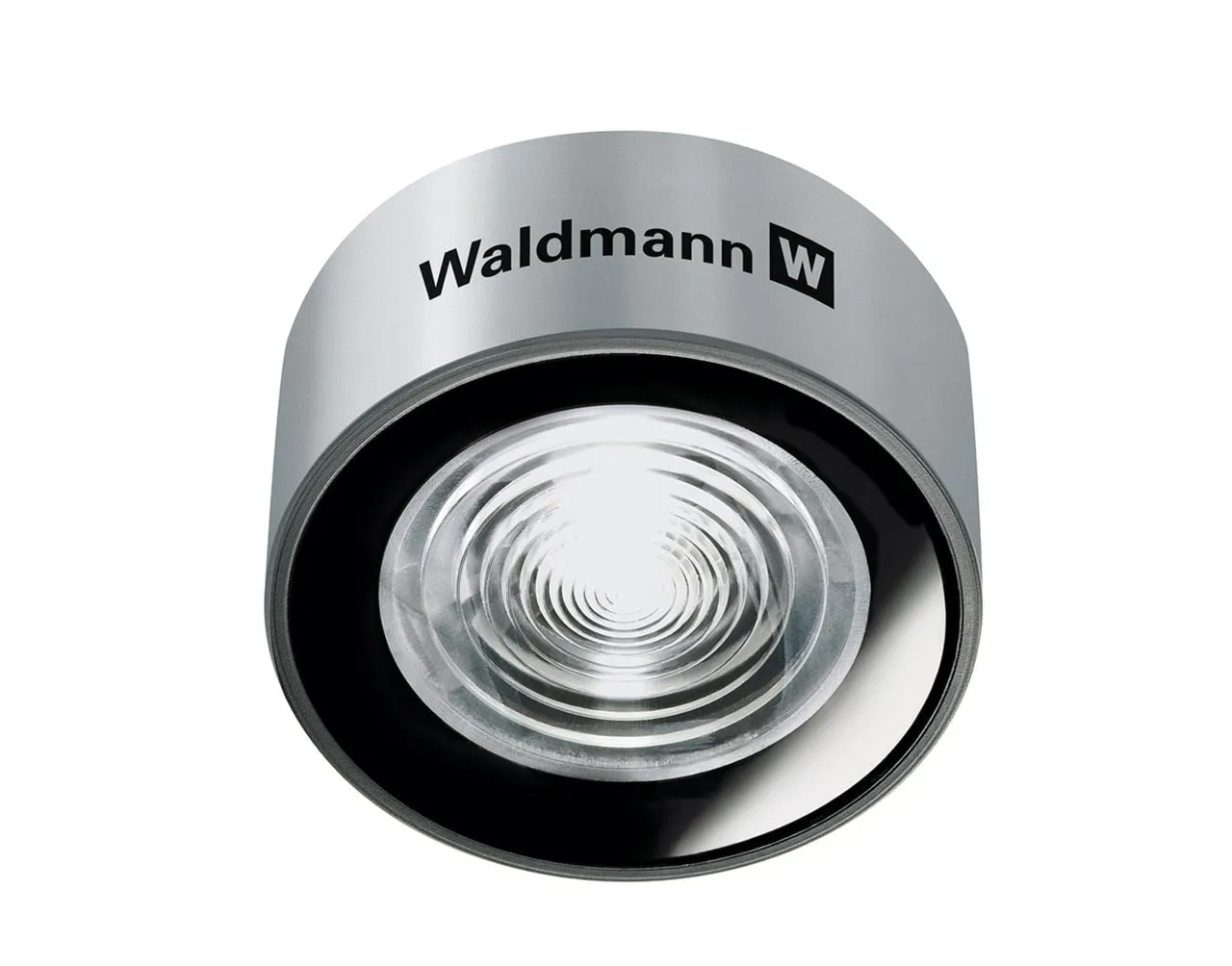

Waldmann's Head LED was designed to be easily integrated into machines and equipment - even when space is tight. Combining LED technology and specially designed Waldmann optics, this flood light provides a major light source with minor space requirements. Head LED can light up an entire machine with its 70- or 100-degree flood. It is also impact and vibration resistant, and is a complete waterproof machine light. The utilitarian design lends itself well for easy integration into machines and equipment, supplying the most light available from a luminaire this size.
- 70 Degree Beam Angle; Spot Light
- Direct mounting - no need for brackets or other mounting accessories
- Height = under 1". Diameter - under 2"
- LED impact and vibration resistant - ideal for use in machines and equipment
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | Waldmann |
| Series: | HEAD LED |
| Model: | MCAYL 4S |
| Current AC/DC: | DC |
| Voltage: | 24 |
| Length (in): | 1.8 |
| Width (in): | 1.8 |
| Bulb: | LED |
| Mounting Type: | Screw Down |
| Wattage: | 11 |
| Lumens: | 805 |
| Color Temperature: | 5600K |
| Color Rendering Index (CRI): | 70 |
| Lens Material: | Glass |
| Lens Style: | Clear |
| Protection Index: | IP67 |
| Operation: | Without Switch |
| Connection: | 8' Cord with Connector |
| Certification: | ETL/cETL Approved |
| Product Warranty: | 5 Years |
ACCESSORIES
Power Options:
|
OPERATING DEVICE: Max. Wattage = 17W to run at 120-277V, 50/60Hz |
|
