Name: Cordless Drill CXS 12 2,5 (Plus /Set)
SKU: 1314586

Product Details ＋

Our most compact drill and lightest drill. Ideally suited for common everyday tasks.

Light, compact and impressively powerful with more torque than the previous generation. The CXS 12 compact drill-driver is your go-to everyday driver for common tasks providing plenty of power in the most compact format. The ergonomic C shape facilitates precise working through the grip position in the drilling and driving axis. A number of available chuck attachments easily tackle the most difficult applications – even in narrow spaces or corners. The FastFix interface and the CENTROTEC system ensure fast bit changes. The compact battery pack is compatible with all chargers in the 18-volt cordless range. Clever details like the bit holder, the LED light control and the Systainer³ make the CXS 12 a compact, multitalented device for every shop or site.

Impressive ergonomics and low weight for easy drilling and fastening

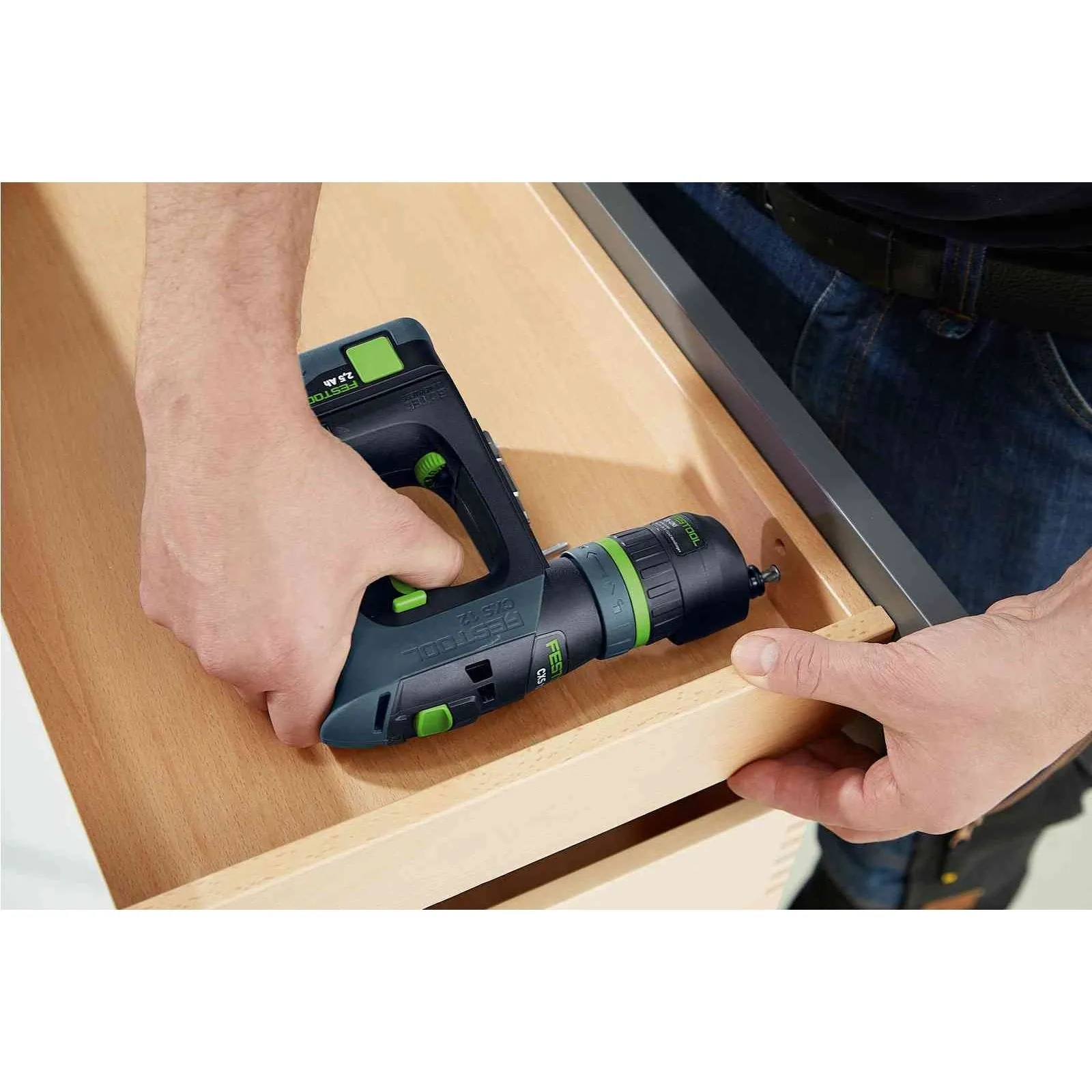

The compact, ergonomic shape makes work easier, even in tight spaces
Impressive performance: Thanks to the extremely powerful, brushless and long-lasting EC-TEC motor

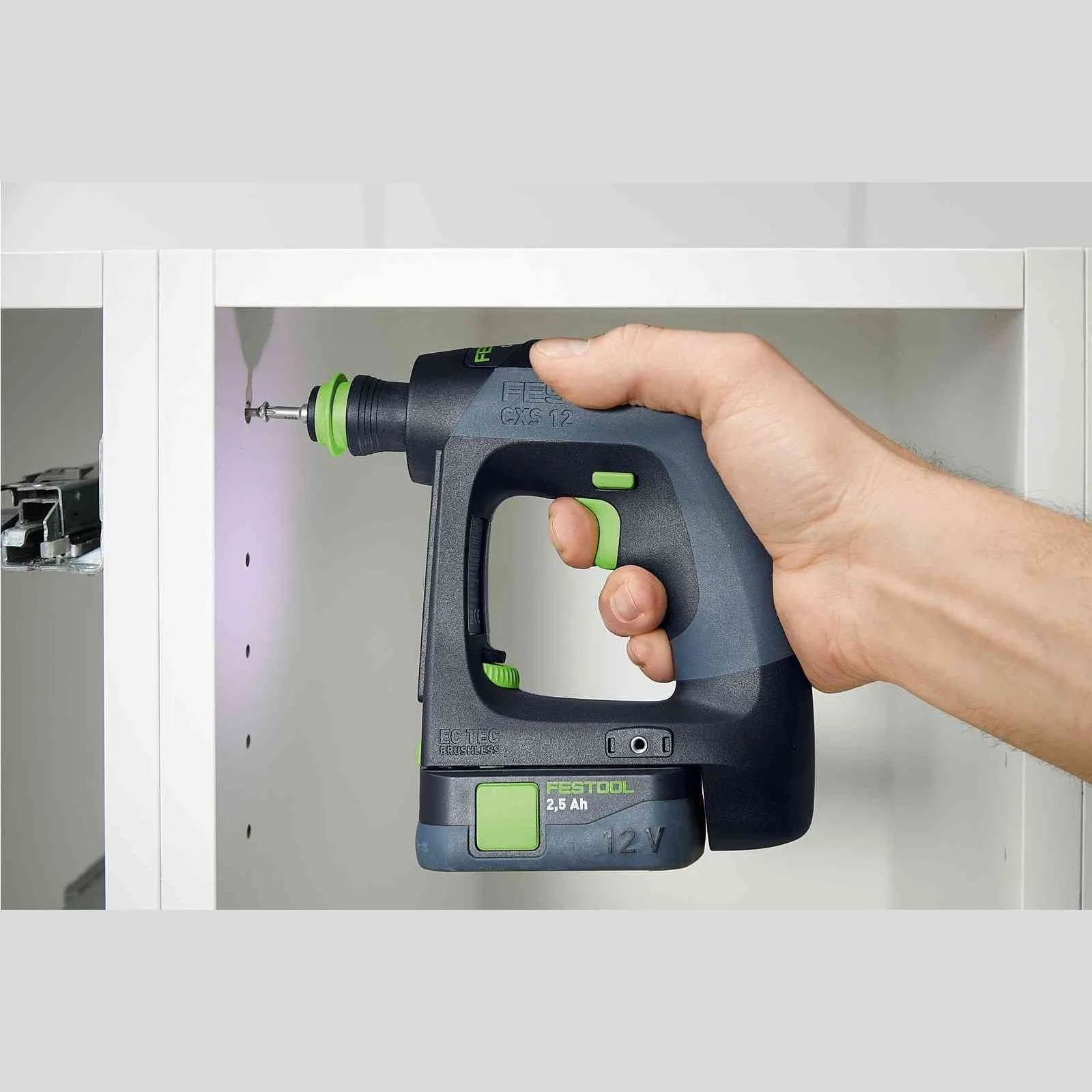

The ergonomic C-shape of the handle puts the user more in line with the bit for more precise work and less fatigue

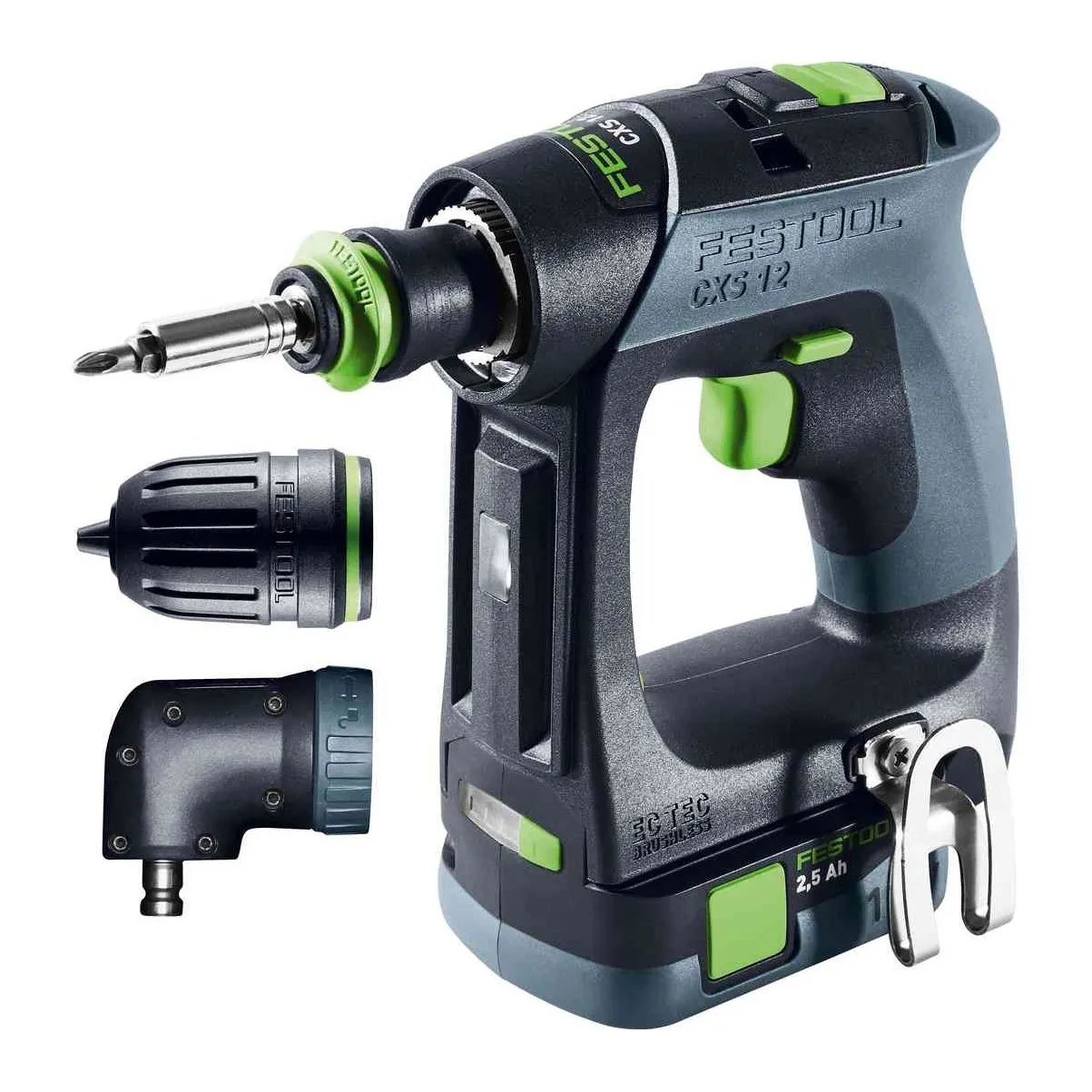

Quick, tool-free conversion to drilling, driving, angular drilling and angular driving thanks to the FastFix interface

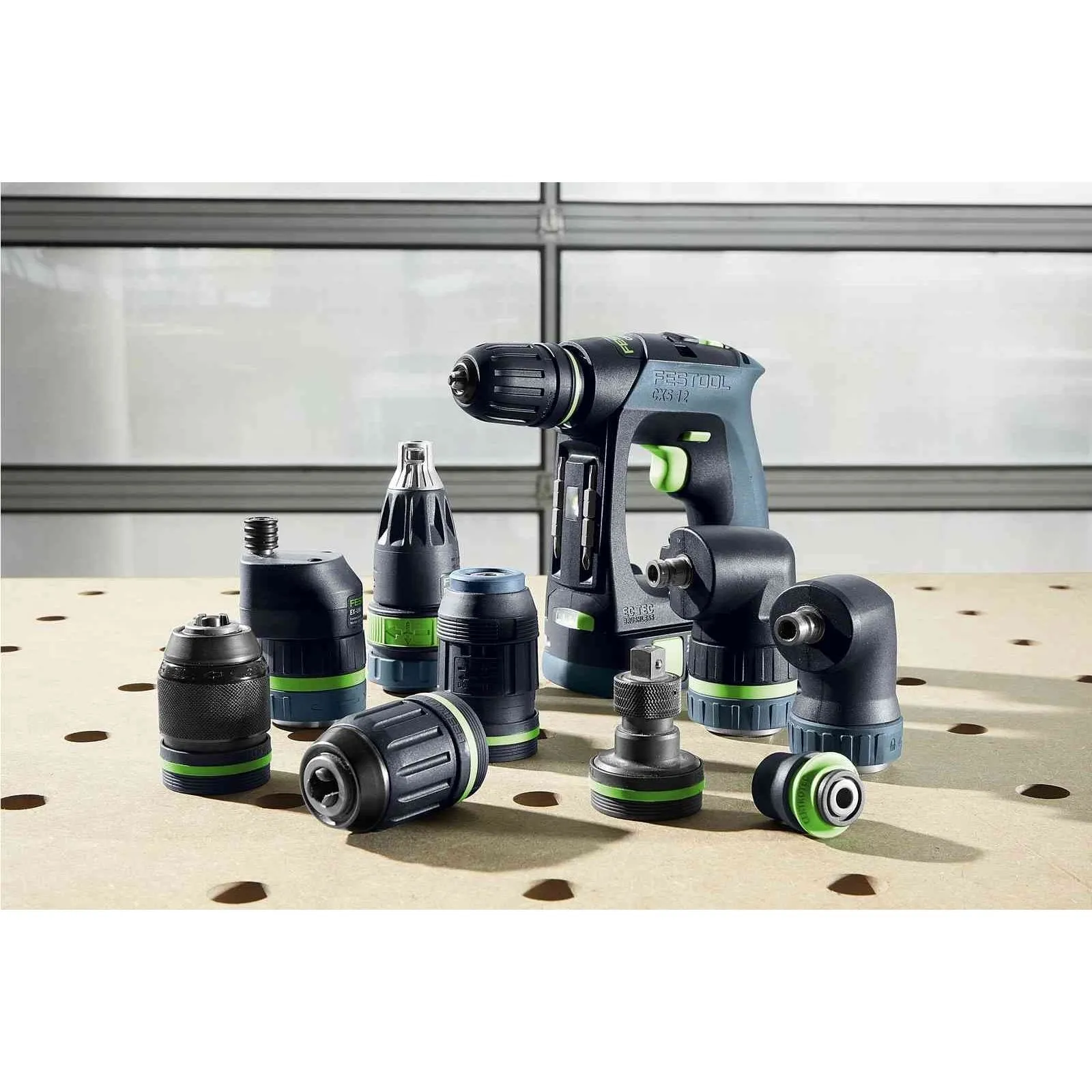

Numerous attachments for a variety of applications. All attachments for the current 18 V line are compatible with the CXS 12

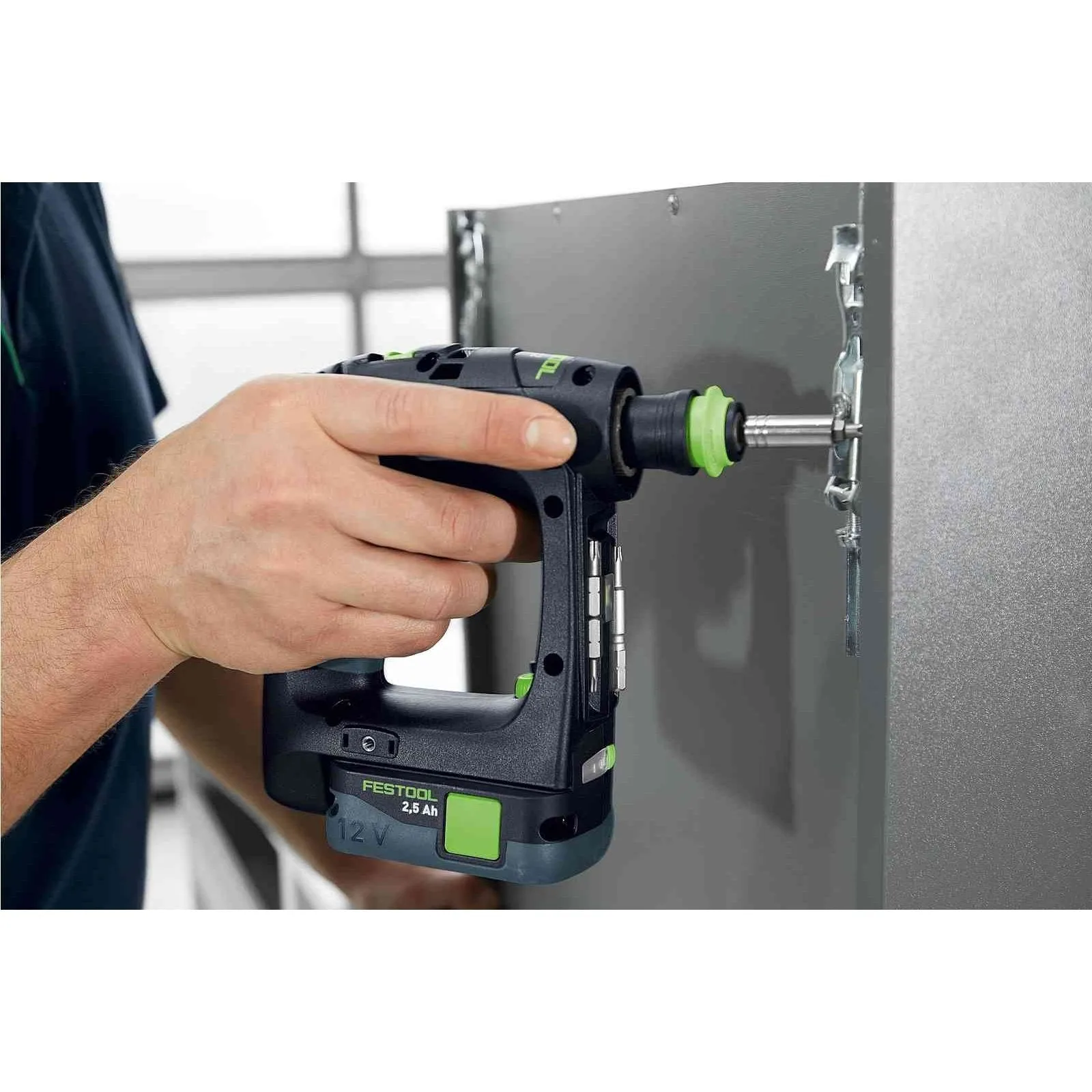

The depth stops and eccentric adapter enable depth-limited screwdriving close to edges
High-quality lithium-ion battery with workpiece-friendly rubber coating, charge indicator and 2.5 Ah for a long life included with the CXS 12. Compatible with all chargers in the Festool 18-volt cordless line
Including removable 3/8" (10 mm) FastFix keyless chuck
Integrated magnetic bit holder
The work area is optimally lit by the onboard LED lighting that can be trigger-activated

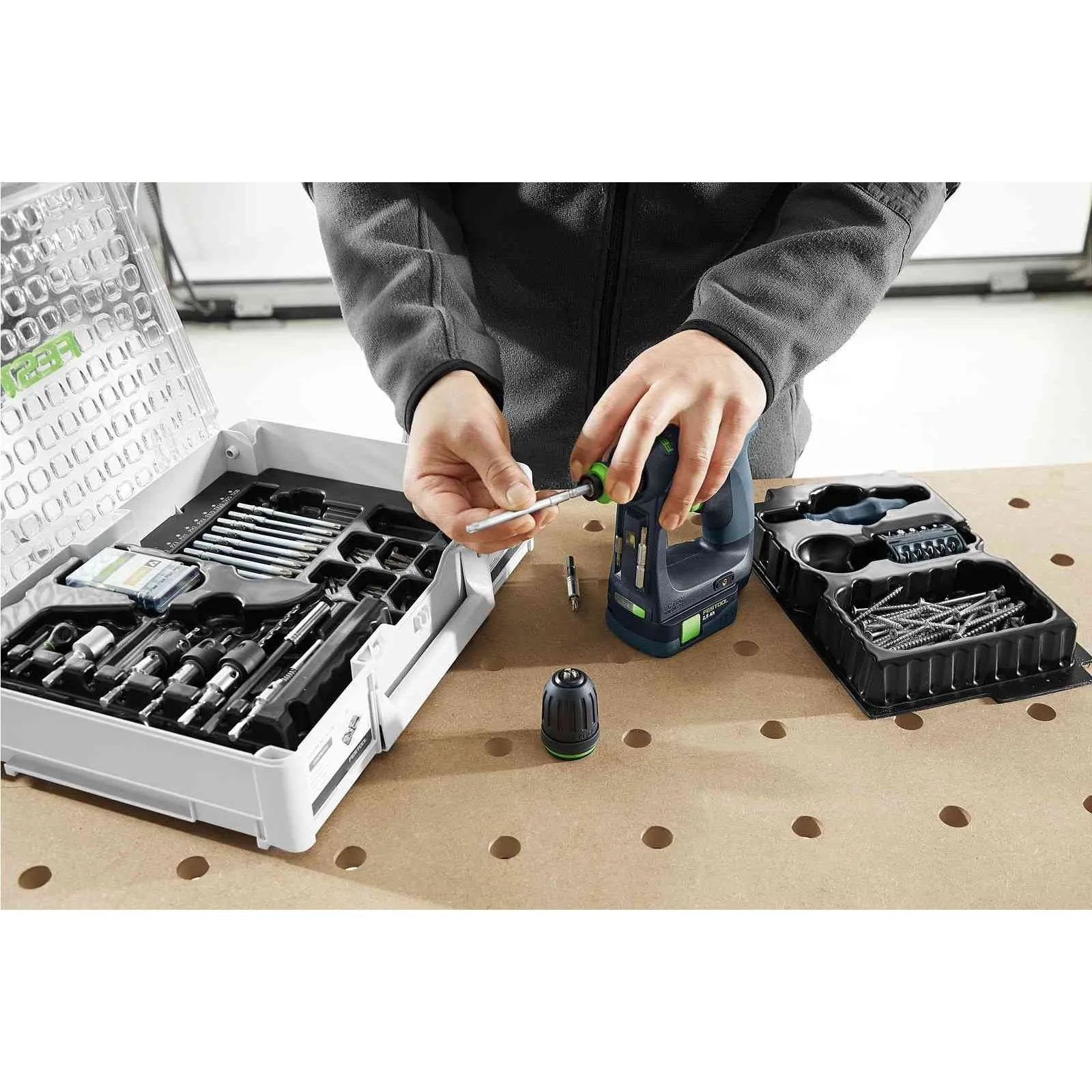

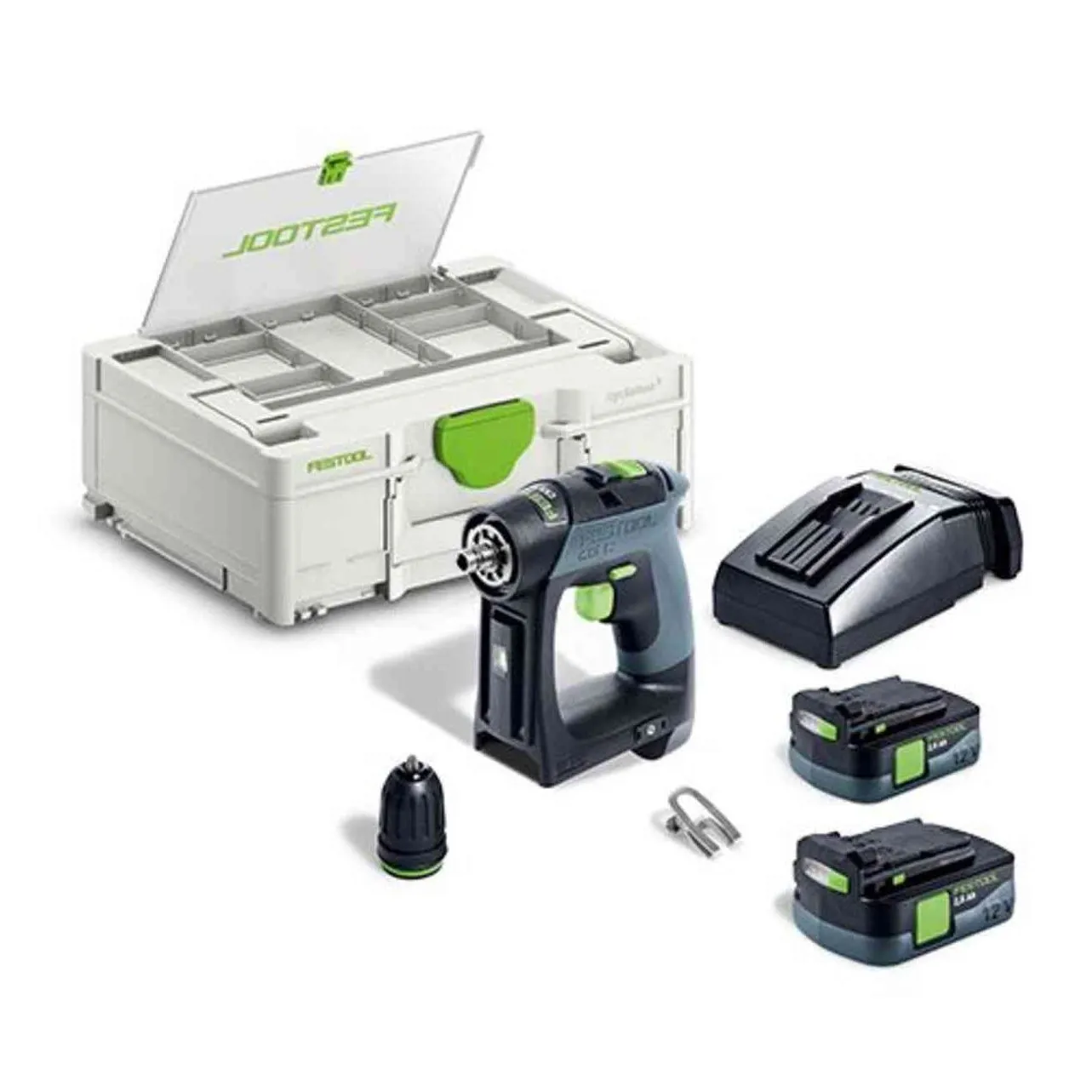

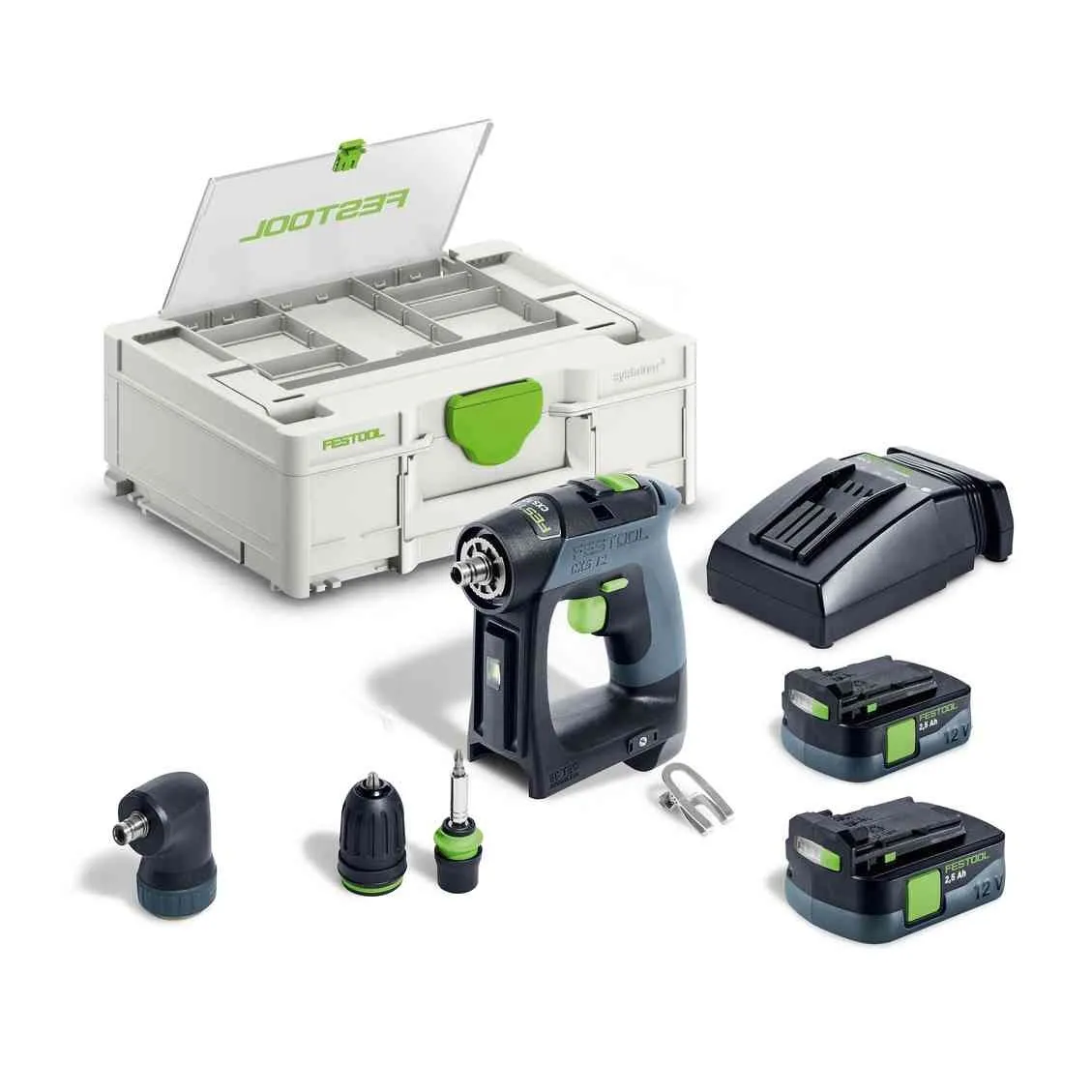

Easy to store, easy to carry. The CXS 12 comes in a practical Systainer³ for quick access to dthe drill and matching accessories
13 torque settings and torque switch-off for precise fastening
Durable removable belt clip that can be mounted on either side

Product Details

Compact design

With a length of 6-5/32” (15.6 cm) and a height of 7” (17.7 cm), the CXS 12 is extremely compact and ergonomic. The ergonomic C-shape of the handle puts the user more in line with the bit for more precise work and less fatigue.
Compact 12 V battery pack

With protective rubber coating and charge level indicator. Compactness combined with compatibility with all chargers in the Festool 18-volt cordless line.
Bits onboard

The integrated recessed bit holder provides space for multiple bits – magnetically secured against falling out.
Impressive performance

The CXS 12 also performs impressively when working with Forstner drill bits up to 1-3/8” (35 mm) and screws up to ¼” x 7-7/8” (6x200 mm) in softwood (reference value for countersunk screws with partial thread in softwood. The maximum screw size that can be used varies depending on the screw type and wood type).

Main applications

Furniture, cabinet and kitchen assembly
Installation of skirt boards, boxes, curtain rods
Interior finishing
Installation of skylights
Manufacture of façade panelling and patio decks
Light and medium drilling and driving in wood, metal and plastic
Driving into wood up to 1/4" x 7-7/8" (6x200 mm)(reference value for countersunk screws with partial thread in softwood. The maximum screw size that can be used varies depending on the screw type and wood type)

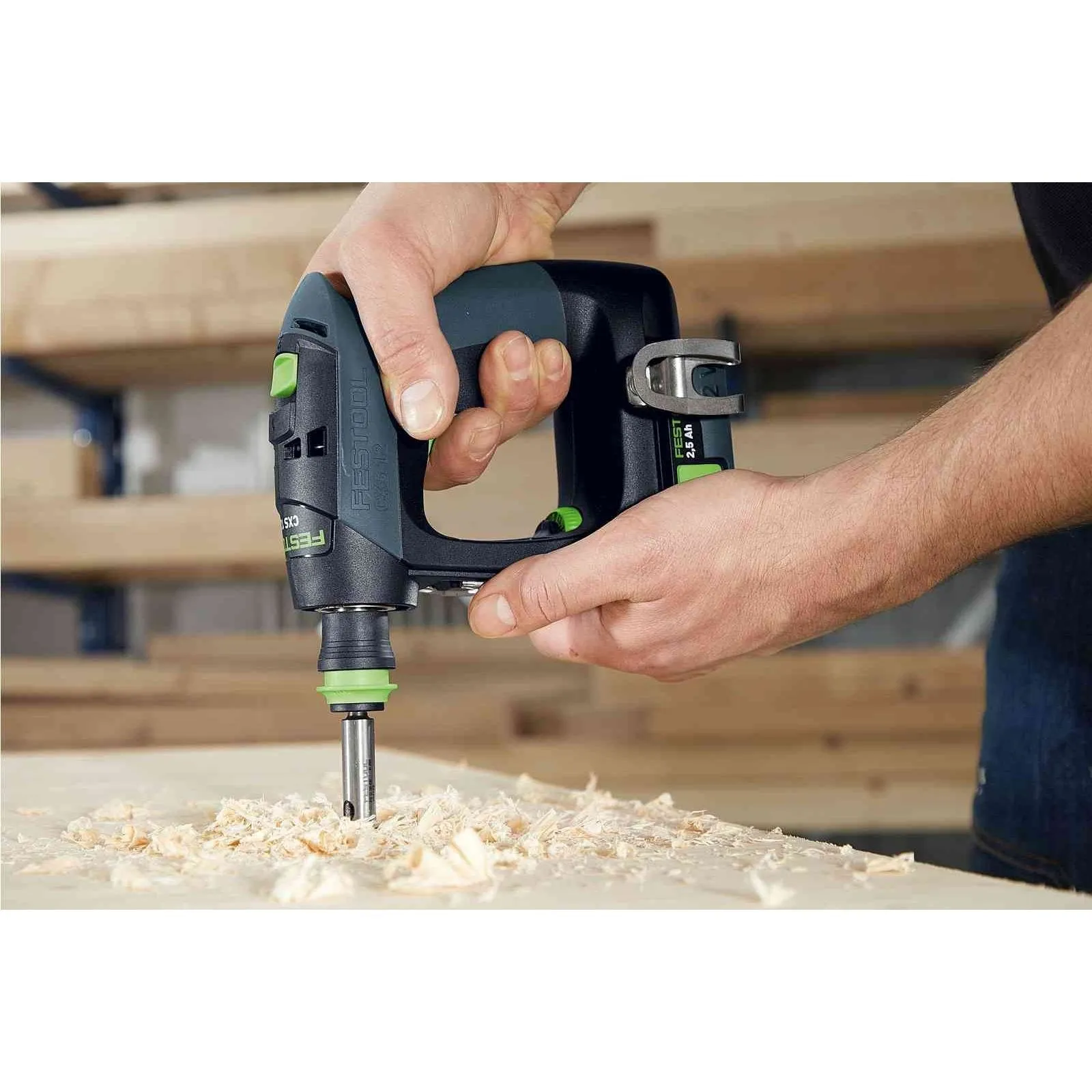

Drilling in wood up to 1-3/8" (35 mm) with Forstner drill bits

Technical Data

Drilling diameter, wood/steel	1-3/8” (35 mm)/3/8” (10 mm)
Weight	1.54 lbs (0.7 kg)
Max. torque, wood	150.5 in-lb (17 Nm)
Chuck range	1/32” – 3/8” (1 – 10 mm)
Torque setting 1st gear	9.7 in-lb (1.1 Nm) - 70.8 in-lb (8 Nm)
Max. torque, wood/steel	150.5 in-lb (17 Nm)/265.5 in-lb (30 Nm)
Torque setting 2nd gear	3.5 in-lb (0.4 Nm) - 20.4 in-lb (2.3 Nm)
