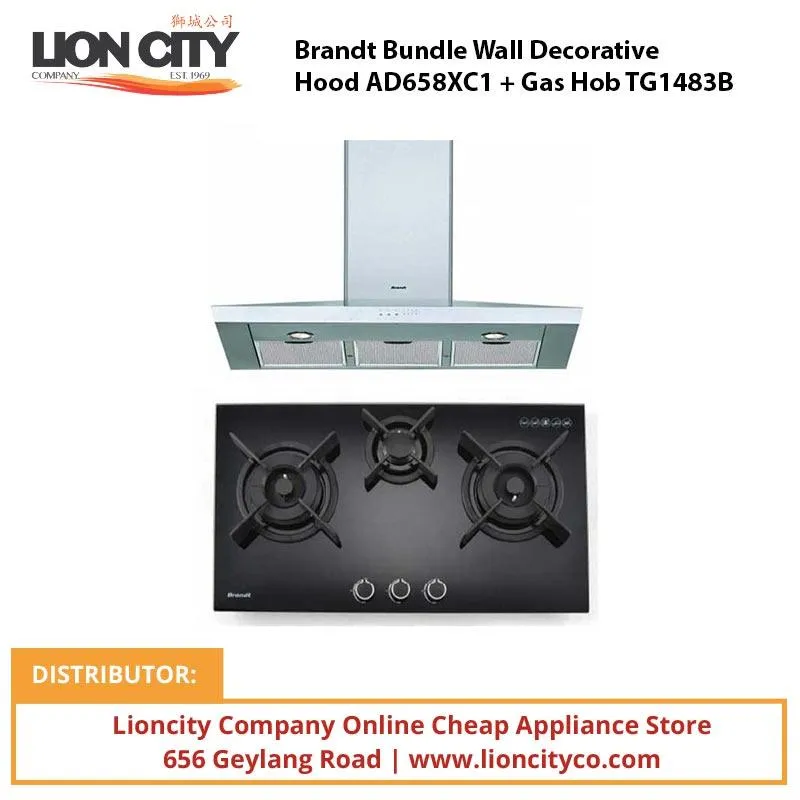

Brandt 90cm Wall Decorative Hood AD658XC1

Features :

• Design Aesthetic and clean lines for a perfect harmony with your kitchen Cartridge filters in aluminium Once the aluminium filters is saturated it can be easily removed and cleaned in your dishwasher. Brilliant Lighting 2 halogen lamps placed in front of the hood provide the best light dispersion.

Specifications :

MAIN SPECIFICATIONS

• Type of hoods: Wall decorative hood
• Output air extraction (m3/h): 755
• Width (cm): 90

CONTROL PANEL

• Type of control: Continuous
• Boost position: Without

LIGHTING

• Number of lights: 2
• Light position: Front
• Type of bulb: Led
• Luminance totale en Lux: 198
• Lighting power (W): 21

PERFORMANCE

• Number of speed positions: 4
• Acoustic power level (recycling) (dBA): 57.1
• Max recycling air extraction (m3/h): 675
• Boost position output recirculating (m3/h): 750
• Boost position air extraction (m3/h): 875
• Minimum evacuation sound level (dBA): 57
• Max evacuation sound level (dBA): 73.4

FILTERING

• Number of filters: 3
• No-return airflow clap: Yes
• Accessories: Characoal filter

DIMENSIONS

• Height of product without chimmey (mm): 110
• Dimensions of product HxWxD (mm) : 110X900X500
• Height of chimmey min/max (mm): 660/1010
• Built in dimensions HxWxD(mm): 110X900X500
• Dimensions of the packed product HxWxD (mm): 600X940X380
• Gross weight (kg): 1584
• Net weight (kg): 14.5

CONNECTIONS

• Voltage (V): 220-240
• Frequency (Hz): 50/60
• Current (A): 10
• Connection rating (W): 3742

Brandt 80cm 3 Burner Gas Hob TG1483B

Features :

Cooking with convenience

• This hob is equipped with 3 different gas burners for every situation including an auxiliary gas burner of 2000W for slow and gentle cooking or small cooking pans

Easy to use

• No need for matches or lighters: easy and convenient electronic ignition with single-handed operation.

Safe cooking

• This hob is equipped with a thermo-electric flame failure feature which automatically interrupts the gas supply should the flame be blown out by a draft.

Easy Installation

• This hob is supplied with either Town Gas or LPG nozzles to suit your home gas configuration.

Specifications :

MAIN SPECIFICATIONS

• Hob type: Gas
• Width (cm): 80
• Energy: Electrical

COOKING ZONES

• Number of zones: 3
• Heating element location: Left
• Heating element location N°2: Centre
• Heating element location N°3: Right
• Type of heating element : Gas
• Type of heating element N°2: Gas
• Type of heating element N°3: Gas
• Maxi power for heater (W): 4500/ 5000 (town gas)
• Maxi power for heater (W) N°2: 2000
• Maxi power for heater (W) N°3: 4500/ 5000 (town gas)

GRIDS

• Number of grids: 3
• Type of grid: Multi-hearth
• Material of pan support: Cast Iron
• Grid colour: Grill

CONTROL PANEL

• Type of control: Knob

ELECTRIC CONNECTIONS

• Current (A): 10
• Voltage (V): 220 - 240
• Frequency (Hz): 50
• Length electrical supply cord (cm): 150
• Plug type: Without

SAFETY DEVICES

• Top Gas Safety Device: Thermocouple
• Certificates of approval: Sissir N(0)

DIMENSIONS

• Dimensions of the packed product HxWxD (mm): 185X800X600
• Built in dimensions WxD (mm): 710x410
• Net weight (kg): 11
• Gross weight (kg): 12
