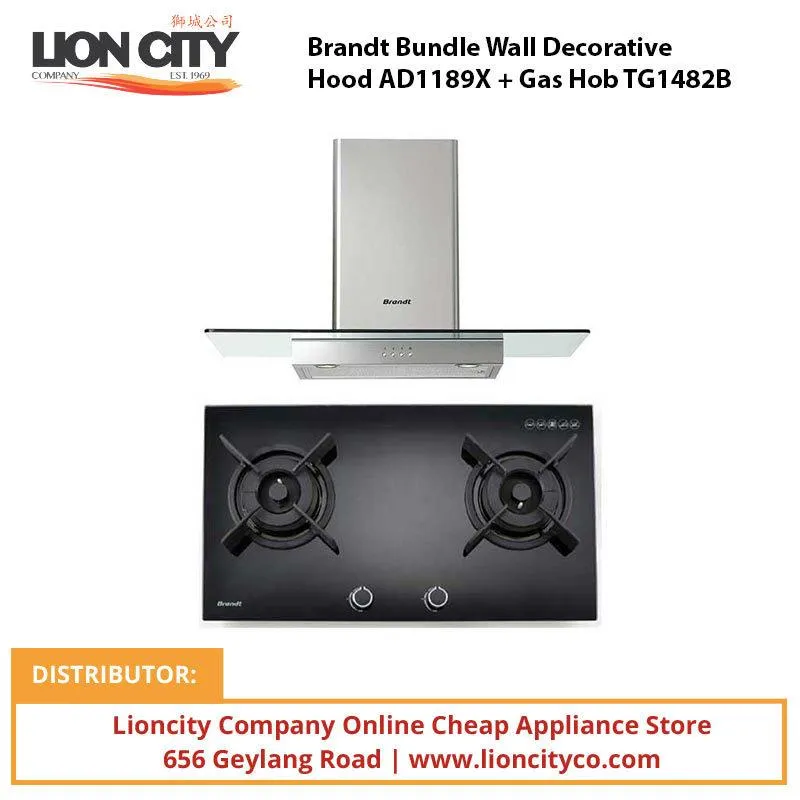

Brandt 90cm Wall Decorative Hood AD1189X

Features :

Decorative glass

• The combination of metal and glass creates harmonious elegance with other built-in product ranges.

Standard carbon filter

• The filter provides an effective air purification in recycling mode.

Halogen lighting

• It provides a natural and powerful light which is evenly dispensed over the cooking surface.

Specifications :

MAIN SPECIFICATIONS

• Type of hoods: Wall decorative hood
• Output air extraction (m3/h): 800
• Width (cm): 90

CONTROL PANEL

• Type of control: Electronic
• Boost position: Without

LIGHTING

• Number of lights: 2
• Light position: Under;Right;Left
• Type of bulb: Halogen
• Lighting power (W): 20

PERFORMANCE

• Number of speed positions: 3
• Acoustic power level (recycling) (dBA): 58
• Max recycling air extraction (m3/h): 600
• Minimum evacuation sound level (dBA): 61
• Max evacuation sound level (dBA): 71

FILTERING

• Référence du kit de recyclage: AFC-62
• Number of filters: 2
• No-return airflow clap: Yes
• Accessories: Characoal filter

DIMENSIONS

• Height of product without chimmey (mm): 65
• Dimensions of product HxWxD (mm) : 900X65X500
• Height of chimmey min/max (mm): 500 / 980
• Dimensions of the packed product HxWxD (mm): 455X955X570
• Gross weight (kg): 2352
• Net weight (kg): 19.5

CONNECTIONS

• Voltage (V): 220-240
• Frequency (Hz): 50
• Current (A): 10
• Connection rating (W): 370W

Brandt 2 Burners Gas Hob TG1482B

Features :

Cooking with convenience

• This hob is equipped with 2 different gas burners for every situation

Easy to use

• No need for matches or lighters: easy and convenient electronic ignition with single-handed operation.

Safe cooking

• This hob is equipped with a thermo-electric flame failure feature which automatically interrupts the gas supply should the flame be blown out by a draft.

Easy Installation

• This hob is supplied with either Town Gas or LPG nozzles to suit your home gas configuration.

Specifications :

MAIN SPECIFICATIONS

• Hob type: Gas
• Width (cm): 80
• Energy: Electrical

COOKING ZONES

• Number of zones: 2
• Heating element location: Left
• Heating element location N°2: Right
• Type of heating element : Gas
• Type of heating element N°2: Gas
• Maxi power for heater (W): 4500/ 5000 (Town Gas)
• Maxi power for heater (W) N°2: 4500/ 5000 (Town Gas)

GRIDS

• Number of grids: 3
• Type of grid: Multi Hearth
• Material of pan support: Cast Iron
• Grid colour: Black

CONTROL PANEL

• Type of control: Knob
• Ignition system: Integrated

ELECTRIC CONNECTIONS

• Hob max electric power input (KW): 11.3
• Current (A): 10
• Voltage (V): 220 - 240
• Frequency (Hz): 50
• Length electrical supply cord (cm): 100
• Plug type: Without

GAS CONNECTIONS

• Hob maximum gaz power input (kW): 11.3

SAFETY DEVICES

• Top Gas Safety Device: Thermocouple
• Certificates of approval: CE

DIMENSIONS

• Dimensions of the packed product HxWxD (mm): 148X783X558
• Built in dimensions WxD (mm): 560X480
• Overall dimensions above the working surface HxWxD (mm): 47X720X510
• Dimensions under worktop HxWxD (mm): 59X556X456
• Net weight (kg): 18.3
• Gross weight (kg): 19
