Technical Specifications

General
Width of the product
594 mm

Height of the product
595 mm

Usable volume (of cavity) - NEW (2010/30/EC)
71 l

Cooking method
4D hot air, Bottom heat, - Defrost setting, Full width grill, Half width grill, Hot Air-Eco, - Hot air grilling, - Pizza setting, - Top and bottom heat

Highlights
Child-proof Lock, ecoClean, Fast Pre-heating function

Energy efficiency rating
A

Home Connect

Home Connect
No

Bosch appliances with the Home Connect remote control now give you complete control over from wherever you are - at the touch of a button. Simply use your mobile device to conveniently control and monitor your machine remotely via the Home Connect app.

Construction type
Color / Material Front
Stainless steel

Built-in / Free-standing
Built-in

Control Panel Material
Stainless steel

Type of control setting devices - cavity 1
Rotary swivel

Door Material
Glass

Energy input
Electric

Installation type
Built-in

Door hinge
Bottom, damped

Size and weight

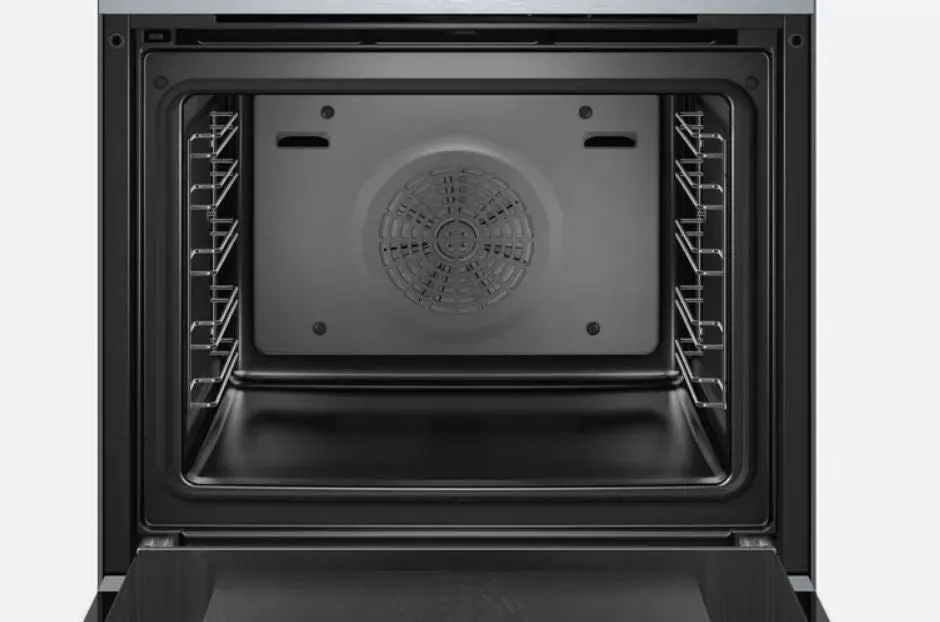

Cavity width
48.0 cm

Cavity height
35.7 cm

Cavity depth
41.5 cm

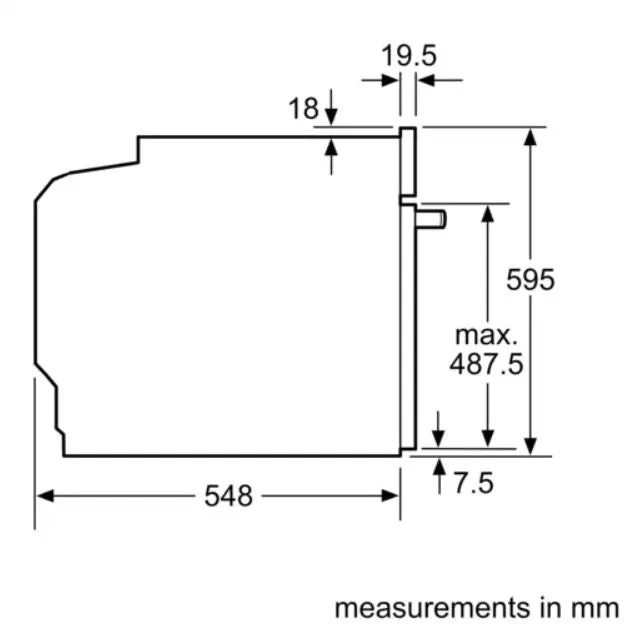

Dimensions
595 x 594 x 548 mm

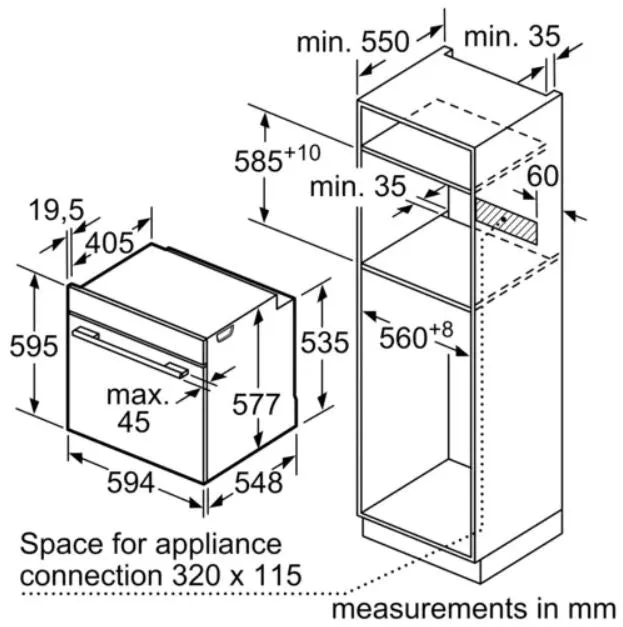

Cut-out width
560 mm

Cut-out height
585 mm

Cut-out depth
550 mm

Depth with door open
1,040 mm

Net weight
35.5 kg

Oven
Area of largest baking sheet
1,290 cm²

Hot air temperature max. (°C)
275 °C

T/b heating temperature max. (°C)
300 °C

Product size
Large

Door temperature
40 °C

Consumption values
Energy efficiency rating
A

Energy consumption per cycle conventional (2010/30/EC)
0.87 kWh/cycle

Energy consumption per cycle forced air convection (2010/30/EC)
0.69 kWh/cycle

Comfort
Pull-out system
Accessory

Are some hobs controls integrated?
No

Connection
Length electrical supply cord
120 cm

Fuse protection
13 A

Plug type
Gardy plug w/ earthing

Voltage
220-230 V

General
Width of the product
594 mm

Height of the product
595 mm

Usable volume (of cavity) - NEW (2010/30/EC)
71 l

Cooking method
4D hot air, Bottom heat, - Defrost setting, Full width grill, Half width grill, Hot Air-Eco, - Hot air grilling, - Pizza setting, - Top and bottom heat

Highlights
Child-proof Lock, ecoClean, Fast Pre-heating function

Energy efficiency rating
A

Door opening
Drop down
